| Place of Origin: | Wuxi,China |
| ब्रांड नाम: | Werna |
| प्रमाणन: | CE,ISO9001,SASO |
| Model Number: | WR224E |
| Minimum Order Quantity: | 5pcs |
|---|---|
| मूल्य: | negotiation |
| Packaging Details: | Plywood |
| Delivery Time: | Within 10 days |
| Payment Terms: | T/T |
| Supply Ability: | 1000units/month |
| हाई लाइट: | three phase synchronous generator,3 phase alternator |
||
|---|---|---|---|

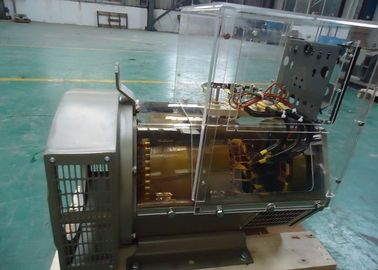

Stamford 3 Phase Synchronous Generator Industrial Alternators 6.5kw - 1200kw
Quick detail:
|
Name |
ALTERNATOR |
Brand Name |
WERNA |
|
Color |
According to the international standard color card |
Feature |
AC brushless synchronous excitation alternator |
|
Power |
48KW |
Certificate |
CE,ISO9001,SASO |
Specication:
|
manufacture |
Wuxi City ,Jiangsu Prov ,China making alternators |
|
Output type |
AC Three Phase Brushless generator |
|
Terminal |
12 / 6 Wire |
|
Rated Voltage |
190V~454V |
|
Frequency |
50Hz |
|
Speed |
1500RPM |
|
Mounting Dimension |
Stamford Type |
|
Winding pitch |
2/3 pitch |
|
Excitation |
Brushless, self-excited, synchro |
|
Insulation Class |
H |
Description:
ac synchronous three phase industrial alternators
Electric performance
Rated output power: 48KW
Rated voltage:400/230v, 440/254v, 220/127v, etc.
Phase/connecting method: 3 phase 12wire/Y type connection
Rated frequency: 50/60hz
Rated speed: 1500/1800rpm
Excited type: Brushless, self excited
Insulation: Class H
Protection: IP23
Voltage regulation: AVR automatic control
Steady voltage regulation≤±1.0%
Transient voltage regulations≤+20%, -15%
Adjustable voltage range 95-105%Un
Sine waveform distortion rate at no-load, ≤5%,(line voltage)
The advantage of our material:
1. Winding enamelled wire is 100% copper
2. The silicon steel sheet we use is the products of Shanghai Baoshan Steel Co.,Ltd,which is the biggest and most famous manufacture of steel.
3. The main frame of the alternator and lead box are made of steel,the end cover is made of high strength cast iron.
4. All the components of our factory,the stator,rotor and excitation will be dippinglacquer twice.
5. All the rotors and stators of our company use the rope of best nylon to tie.We promise the security of our products,the phenomenon of ribbon burst will never happen.
6. All the rotors should be tested by dynamic balance of Germany to go on test of balance. All the products of our factory should be tested by specialized Test Room.
Why to choose Werna Alternator/generator?
1. 100% copper winding wire
2. In stock and fast delivery
3. Two year warranty
4. Best quality and competitive price
5. Two-time vacuum impregnation dipping
6. powerful quality control team
7. CE,ISO9001
8. Good after-sale service
