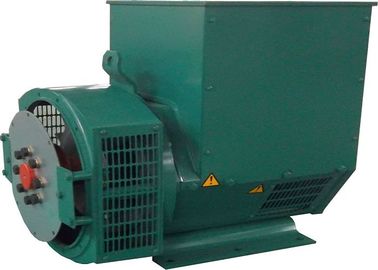

Copy Stamford Diesel AC Generator 30kw 30kva For Cummins Generator Set

Copy Stamford Diesel AC Generator 30kw 30kva For Cummins Generator Set

  • Copy Stamford Diesel AC Generator 30kw 30kva For Cummins Generator Set
Copy Stamford Diesel AC Generator 30kw 30kva For Cummins Generator Set
उत्पाद विवरण:
Place of Origin: Wuxi,China
ब्रांड नाम: Werna
प्रमाणन: CE,ISO9001,SASO
Model Number: WR224C
भुगतान & नौवहन नियमों:
Minimum Order Quantity: 5pcs
मूल्य: negotiation
Packaging Details: Plywood
Delivery Time: Within 10 days
Payment Terms: T/T
Supply Ability: 1000units/month
संपर्क करें
विस्तृत उत्पाद विवरण
हाई लाइट:

single phase diesel generator

,

ac brushless generator

Copy Stamford Diesel AC Generator 30kw 30kva For Cummins Generator Set


Quick Detail:

Name

ALTERATOR

Brand Name

WERNA

Color

According to the international standard color card

Feature

AC brushless synchronous excitation alternator



Power

          30kw

Certificate

CE,ISO9001,SASO


Specifications:

Model

WR224C

manufacturer

 Wuxi City ,Jiangsu Prov ,China making alternators

Output Type

AC Single Phase diesel generator

Terminal

12 / 6 Wire

Rated Voltage

110-240V

Frequency

50HZ

Speed

1500RPM

Mounting dimensions

Stamford Type

Winding Pitch

2 / 3 pitch

Excitation

Brushless, self-excited, synchronous

Insulation Class

H



Technical data

Werna Type 1Phase 50Hz1500rpm Shaft Length Copper total weight Core length
      220V~240V / 1.0
KVA KW mm kgs mm
WR224C 28.0 28.0 668.2 20.55 130
WR224D 35.0 35.0 668.2 21.75 160
WR224E 40.0 40.0 758.2 23.74 180
WR224F 50.0 50.0 758.2 27.64 240
WR224G 60.0 60.0 673.3 31.04 300
WR274C 66.0 66.0 758 34.74 165
WR274D 74.0 74.0 758 38.74 205
WR274E 94.0 94.0 758 42.51 230
WR274F 110.0 110.0 873 46.21 285
WR274G 120.0 120.0 923 49.01 335
WR274H 140.0 140.0 963 54.21 375

Description:
Frequency And Voltage
50Hz or 60Hz as per customer’s request. Voltage from 380 ~ 690V, 190V~345V, 220~400V, serial star, parralle star and serial delta connection are available, All three-phase generators are 12-lead reconnectable, providing voltage and phase flexibility.
Insulation and Protection
Insulation: H, Protection: IP23
Voltage Regulators
The model we use including: MX321, MX341, AS440, SX440, SX460, etc.
Winding
All generator stators are wound to 2/3 pitch.
The quality management system of our factory
A set of integrated quality management system,there are standard imported checking rules of every component.All the suppliers should be selected and checked strictly by our factory,all the materials should be appointed specially after the strict selection by our factory.
Competitive Advantage:
1. 100% copper winding wire
2. In stock and fast delivery
3. Two year warranty
4. Best quality and competitive price
5. Two-time vacuum impregnation dipping
6. powerful quality control team
7. CE,ISO9001
8. Good after-sale service
